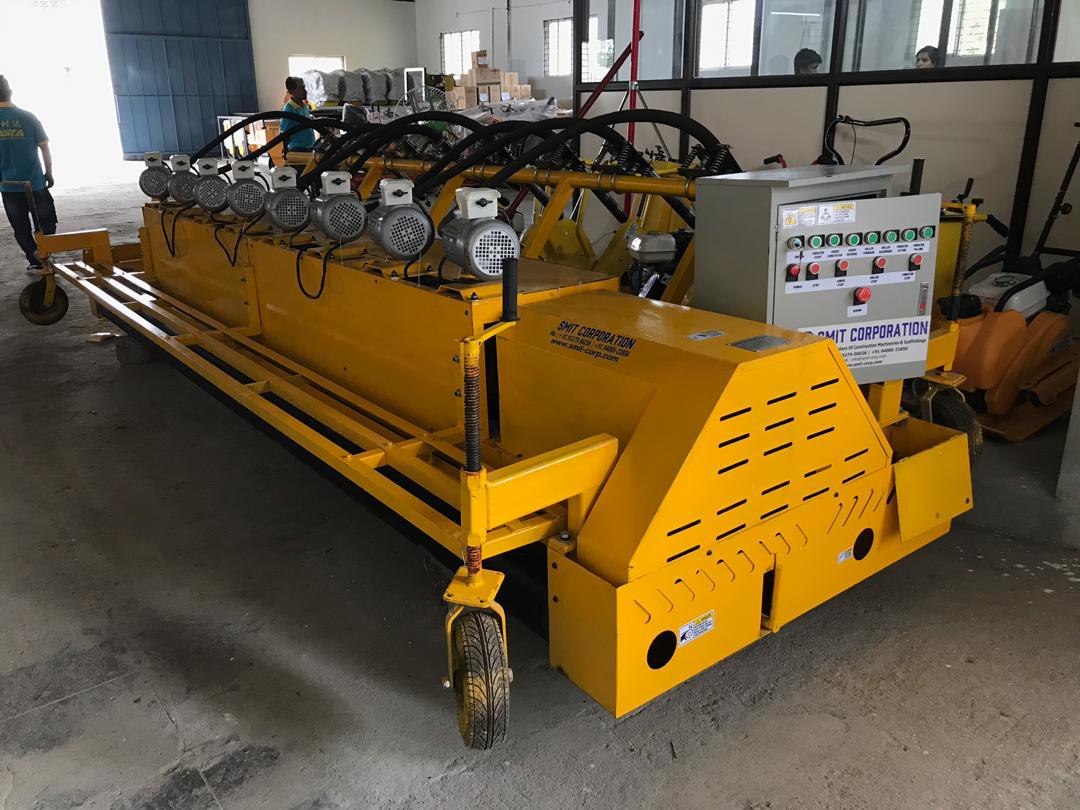

Fixed Form Concrete Road Paver

With the help of our adroit professionals, we offer you an exclusive range of Cement Processing Machines. Smit’s Fixed form Concrete Road Paver is one such machine. It is manufactured by employing a high-tech mechanism with slab thickness, which is been used in various applications including airports, runways, city roads, parking lots, and many more. It is an excellent machine configured to take on variable-width work.



Additional information

Total width of Roller

Models of 4 mtrs to 9 mtrs

Max. pavement width

≤9meters

Model

HTTP Three Axis Type

Vibrating Frequency

48-60 Hz

Existing Force

4.2-5.5 kN

Paving Thickness

≤300 mm

Spread Thickness

250-300 mm

Vibrator Needles

7 to 10 nos. (50 mm, 2.0 mtr length)

Walking Speed

4-8 m/min

Max.Motor Power

28 kW

Length of Roller

5 to 10 mtr

Weight of Machine

1000 to 2000 kgs
