Tower Hoist without H Frame


Call for Inquiry

Tower Hoist

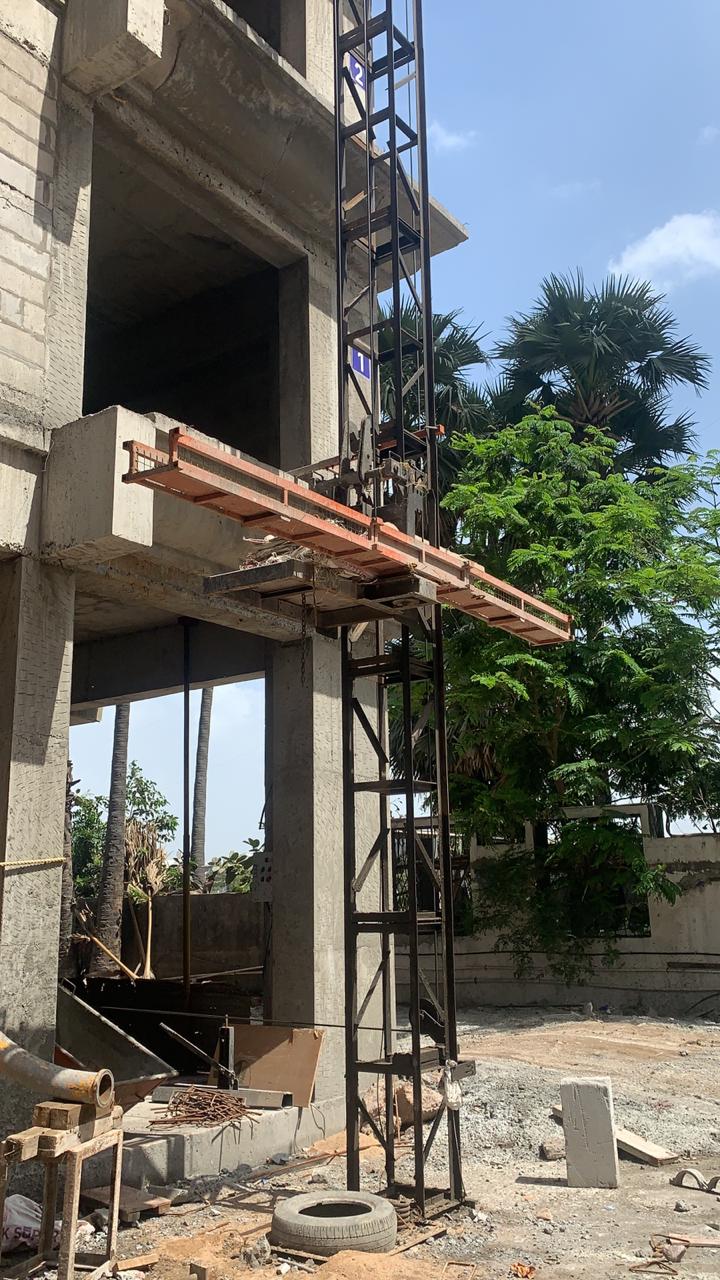

Smit’s Tower Hoist without H Frame is heavy-duty and yet requires minimum maintenance. They are used to lift concrete and other construction material for slab construction. Smit’s Tower Hoists are easy to install and are built to ensure safety at the construction site



Additional information

Model

SM-TRHS-1T

Size

1 ton – 750 kgs. Net usable

Type

Remote type

Height

120 ft

Column (Towers)

24 nos. (5 ft height each)

Wire Rope Length

160 mtrs

Wall Tie (Anchors / support)

6 nos. (at 20 fts. Each)

Weight of each Columns Towers

Approx. 48 kgs. each

Angles in Towers

50x50x6 mm

Wire Rope Diameter

12 mm (Make – Usha Martin)

Electrical Panel Make

Siemens or Schneider Brand

Prime Mover Motor Type

Electric 3 phase Brake Motor

Motor Power

10 H.P., 1440 RPM

Foundation Anchoring

Base Anchoring with 200 mm bolts

Remote Type

Remote with UP, DOWN & Emergency switch

Remote Wire

Wire of 20 ft from Panel supplied

Emergency Safety System

L-Bracket emergency brake system

Motor Starter

Gelco Make or Siemens make (on buyer’s scope)

Warranty

1 year standard for Motor & Gear box
