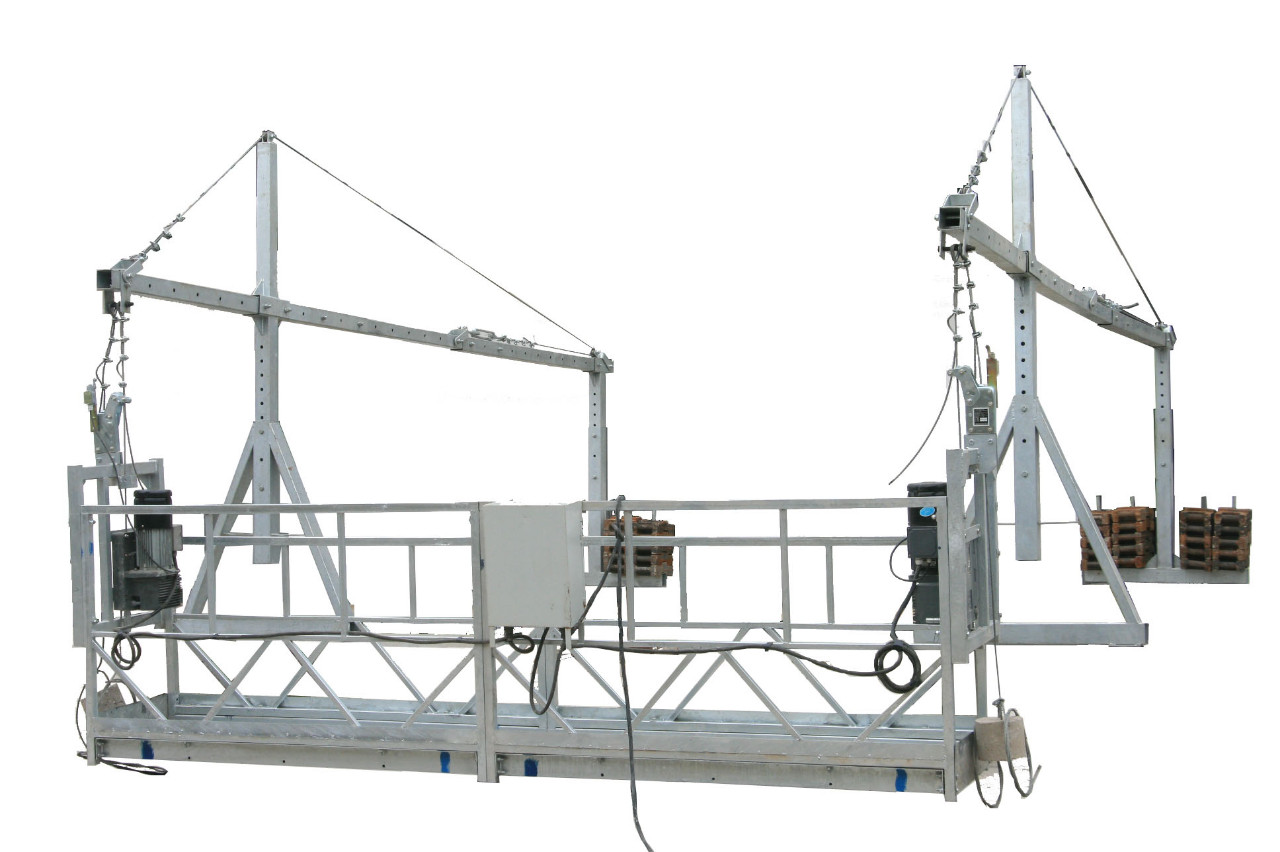

Suspended Rope Platform | Facade Access System

Smit Corporation Offers the Suspended Rope Platform which is widely used for exterior construction of high-rise buildings, bridge construction, window cleaning, inspection & maintenance, refurbishing of outer wall construction, installing of curtain walls, and maintaining cleaning of mansions. It can specifically meet the demands of different projects, such as for ships, chimneys, and for checking elevators. It is convenient to operate, safe and reliable, and high efficiency. Facade Access System/Gondola is generally praised in the industry due to good materials, fine workmanship, reliable quality and favorable price.

Additional information

Platform size

2.5 Meter x 2 no.s = 5 Meter
1.5 Meter x 1 no.s = 1.5 Meter
1 Meter x 1 no.s =1 Meter
Total = 7.5 Meter

Material of platform

M.S. Steel Platform & Beta Dip Hot Galvanized

Balance Weight

1000 kgs.

Rated load

800 kgs.

Ascend Speed (working speed)

9-11m/min

Wire rope

4 x 31 Sw –FC- 9.1

Wire rope Size

9.1 mm

Wire rope Length

100 Meter

Structure Weight Approx.

900-950 Kg.

Counter Weight

1000 kg.

Rated Lifting force

8KN

Power

1.8kW x 2 no.s

Voltage

AC 415v 3 phase

Breaking

15 NM

Safety lock

Tilt proof safety lock (2 No.s)

Height Adjustment

1.15m – 1.75m

Front Beam extension

1.1m – 1.7m
