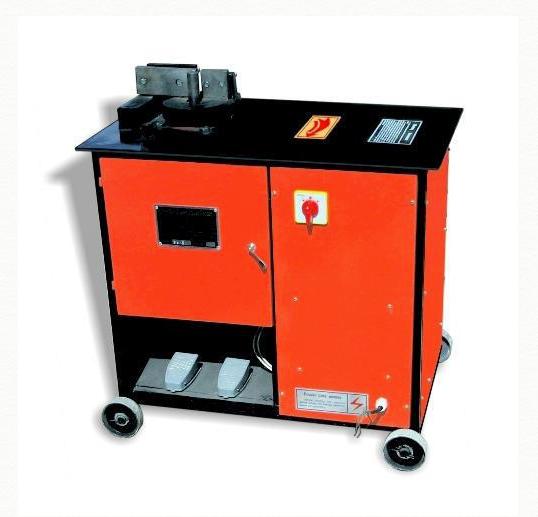

Stirrup Ring Making Machine
Our Stirrup Ring Making Machine is widely appreciated for its enormous features such as high efficiency, excellent performance, sturdiness, and durability. Precisely manufactured by employing state-of-the-art technology and optimum quality components, various models of our advanced Ring Making Machine (i.e. GF20 and GF20 Single Phase, GF20 Digital, GF25, and GF20N) are suitable for the building sites and rebar processing factory.
Additional information
| Single Wire | Φ5 – 13 [mm] |
|---|---|
| Double Wire | Φ5 – 10 [mm] |
| Max. Bending Angle | ±180° [Double Direction] |
| Max. Bending Speed | 900 [°/sec] |
| Max. Pulling Speed | 100 [m/min] |
| Mandrel Diameter | Φ13 – Φ30 [mm] |
| Length Tolerance | ± 1 [mm] |
| Bending Tolerance | ± 1° |
| Average air-compressed consumption | 6[I/mm] |
| Average Electric Power Consumption | 5 kW/h |
| Voltage | 415 V – 50 Hz |
| Working Environmental Temperature | -50 C to 400C |
| Overall Dimension | 3300 × 1000 × 1900 [mm] |
