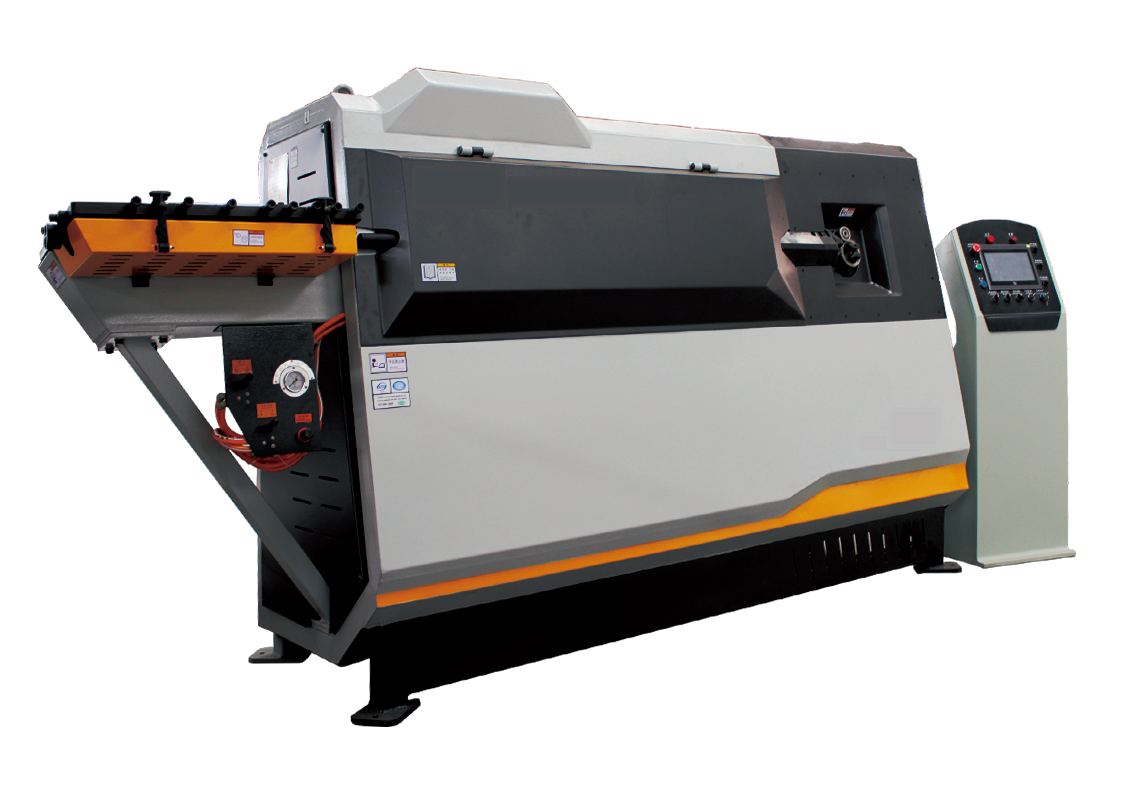

Automatic Rebar Stirrup Machine
Smit’s Automatic Rebar Stirrup Machine ensures high performance for its reliable design and high-quality material built up. With its whopping production capacity per month (i.e. 200-250 Tons with 10 Hours x 2 shifts/Day and 26 Days/month), Our automatic Rebar Stirrup Machine is widely known for its efficient power consumption as well as excellent performance.
Category: Bar Processing Machine
Additional information
Single Wire | 5 – 13 [mm] |
---|---|
Double Wire | 5 – 10 [mm] |
Production Capacity Per Month | 200-250 Tons with 10 Hours * 2 Shift/Day & 26 Days/Month |
Max. Bending Angle | +-180 Degree [Double Direction] |
Max. Bending Speed | 900 [ Degree/sec] |
Max. Pulling Speed | 100 [m/min] |
Mandrel Diameter | 13 – 30 [mm] |
Length Tolerance | +- 1 [mm] |
Bending Tolerance | +- 1 Degree |
Average air-compressed consumption | 6[I/mm] |
Average Electric Power Consumption | 5 kW/h |
Labeled Electric Power | 28kW |
